|Rated Load (kg):||5000||Bucket Capacity ( M3):||3|
Wheel Loader equipment,
loader construction equipment

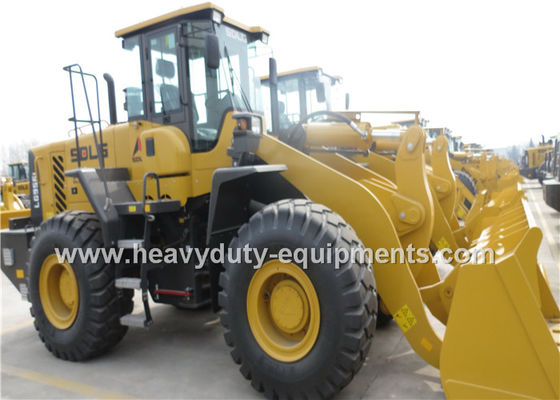

wheel loader L956F SDLG brand 3 valves with standard bucket 3 m3 and cabin
|Transmission||Fixed shaft gearbox||Bucket Capacity ( m3)||3|
|Axle||Heavy duty||Rated Load (kg)||5000|
|Hydraulic System||Pilot Control||Max Dumping Height (mm)||3120|
|Working Arm||Standard||Cycle Time (s)||≤11.3|
|Control Valve||3 Valve||Min Steering Radius (mm)||6036|
|Brake System||Dual Brake Petal||Max Breakout Force (KN)||≥180|
|Cab||Standard||Dimension (L*W*H) (mm)||8079*3024*3382|
|Cooling/Heating System||Standard||Operating Weight (kg)||16900|
L956F is a mining and excavating typed loader for loading and unloading hard materials, with long axle base, large breakout force. It is customized for mine and heavy-load operating conditions and is widely used in building site, aggregate towms construction and etc
1. It adopts 20-ply rating tyre exclusively used for mine that is of larger bearing capacity and good abrasion performance,
2. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system which provides the entire machine with high cooling efficiency.
3. Power shift planetary transmission case of mature SDLG technology is used, with two front gear positions and one rear gear position and long service life and is simple to operate. SDLG reinforced drive axle is configured with large bearing capacity and high reliability.
4. It is equipped with large-cylinder-diameter rotating bucket oil cylinder and lifting cylinder, with breakout force of up to 18.3 ton and ground lifting force of up to 16.3 ton.
