Product Details:
Payment & Shipping Terms:
|
| Engine: | Shangchai SC11CB240.1G2B1 | Bucket Capacity ( M3): | 3.5-4.5 |
|---|---|---|---|
| Rated Load (kg): | 6000 | Max Breakout Force (KN): | 175 |
| Dimension (L*W*H) (mm): | 8820*3145*3465 | Attachment: | Optional |
| High Light: | heavy equipment loader,loader construction equipment |
||

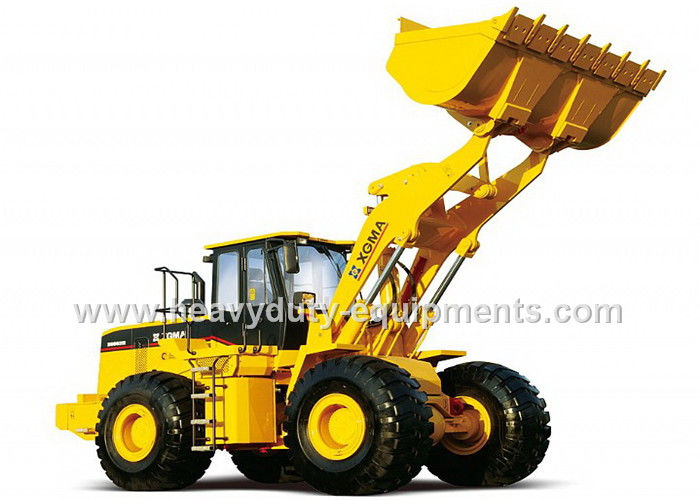

XGMA XG962H wheel loader with 3.5m³ bucket capacity and four-stoke cycle
| Item | XG962H | Engine |
Shangchai SC11CB240.1G2B1 |
| Max. Torque(N.m) | ≥1000 | Bucket Capacity ( m3) | 3.5-4.5 |
| Max. Gradeability (°) | 28-30 | Rated Load (kg) | 6000 |
| Dump reach (mm) | ≥1330 | Dumping clearance at full lift (mm) | ≥3340 |
| Working Arm | Standard | Cycle Time (s) | ≤10.5 |
| Lifting time of lift arm (s) | ≤6.5 | Min Turning Radius (mm) | 7470 |
|
Discharge angle (°) |
≤45 | Max Breakout Force (KN) | 175 |
| Cab | Standard | Dimension (L*W*H) (mm) | 8820*3145*3465 |
| Cooling/Heating System | Water cooling | Operating Weight (kg) | 4850 |
| Quick Coupler | No | Attachment | Optional |
Description:
The large-opening engine hood is more convenient for the engine service and maintenance. Several kinds of working devices and buckets are available to meet the requirements of different users.
Advantage:
1. ZF WG200 electro hydraulic control transmission features advanced technology; high reliability, and high transmission efficiency.
2. Soundproof, heat-insulated, and damping cab can bring wide driving space and good field of vision with safe glass passing the 3C certification, and the flame-resistant trim.
3. Z-type connecting rod features large breakout force and high working efficiency.
4. Several kinds of working devices and buckets are available to meet the requirements of different users, e.g. Rock bucket, enlarged bucket, flat sand bucket, log grapple, grass grapple, coupling fork.
Application:
Wheel loader is mainly used in road construction, railway construction, of shoveling and loading bulk materials.
