Product Details:
Payment & Shipping Terms:
|
| Model: | SD08YE | Engine: | Cummins QSB3.3 |
|---|---|---|---|
| Dozing Capacity: | 1.93m3 | Number Of Track Rollers (each Side): | 6/side |
| Number Of Travel Motor And Reducer: | 2 | Track Gauge: | 1600mm |
| High Light: | dozer construction equipment,heavy equipment bulldozer |
||

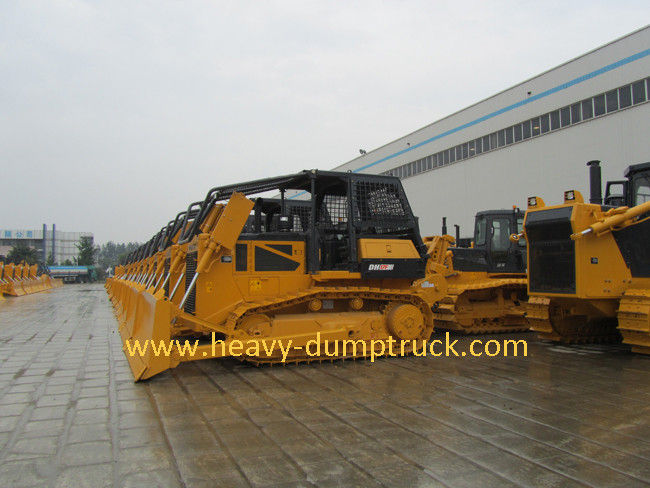

Shantui bulldozer SD08YE equipped with Cummins QSB3 , 3 engine
Specification:
| ITEM | SD08YE | Engine | Cummins QSB3.3 |
| L×W×H (Ripper not included) | Traction frame 4252×2680×2775 |
Ripping depth of ripper | - |
| Operating weight (Ripper not included) | 8020kg | - | |
| Rated power | 59kw | Lifting height of ripper | - |
| Grade ability | 30 | Number of carriers (each side) | 2/side |
| Blade type | Straight tilt | Number of track rollers (each side) | 6/side |
| Blade width | Straight tilt blade 2680mm | Number of Travel Motor and Reducer |
2 |
| Width of track shoe | 460mm | ||
| Track gauge | 1600mm | ||
| Ground length and ground pressure | 38.3kpa | ||
| Dozing capacity | 1.93m3 | Pitch | 154mm |
| Forward speed | 0-9km/h | ||
| Max drop below ground of blade | - | Reverse speed | 0-9km/h |
| Lift height of blade | 750mm | ||
| Ripper type | - |
Description:
The turbocharged, air-to-air inter cooled, electronically controlled diesel engine emissions meet EPA Tier 3, EU Stage III A standards; provides excellent power, economy (compared with similar horsepower hydrostatic bulldozers provides 15% savings), and durability.
Advantage:
1. The electronically controlled, dual-circuit hydrostatic drive system automatically adjusts the power output and the traveling speed to adapt to load changes; both sides of the track are independently driven, so as to ensure full steering power output, and enabling reverse rotation for both tracks; possesses “multi-grade” speed characteristics, providing optimum speed in a variety of working conditions.
2. The hand-operated electric control system, left joystick controls machine direction and speed, right joystick operates working device; system enables accurate, simple, and comfortable operation of the machine.
3. The heavy, durable, and strong chassis provides for reliable operations in any environment.
