|Operating Weight (Ripper Not Included):||37.2t||Blade Type:||Blade Semi-U|
|Blade Width:||Semi-U Blade 4030×1720mm||Dozing Capacity:||Semi-U Blade 11.9 M3|
dozer construction equipment,
heavy equipment bulldozer

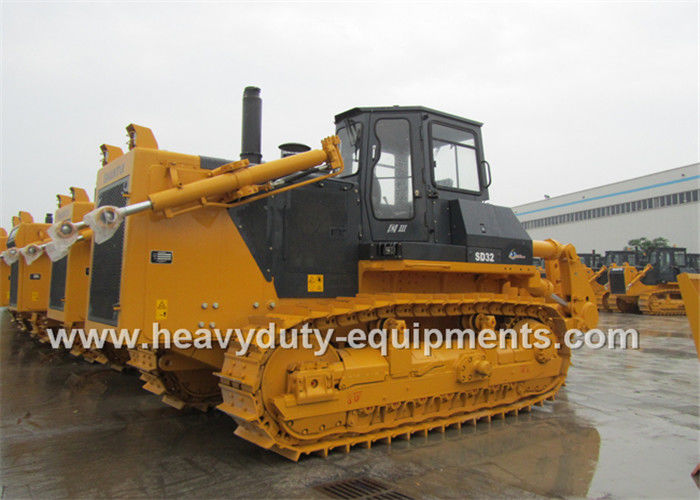

12M3 Dozing Capacity Shantui SD32 Bulldozer Semi U Blade 228.6mm Pitch
|L×W×H (Ripper not included)||6880×4130×3725 mm||Ripping depth of ripper||Single ripper 1250mm|
|Operating weight (Ripper not included)||37.2t||Three-shank ripper 842 mm|
|Rated power||235/2000kW/rpm||Lifting height of ripper||Single ripper 955Three-shank ripper 883|
|Gradeability||30°||Number of carriers (each side)||2|
|Blade type||Blade Semi-U||Number of track rollers (each side)||7|
|Blade width||Semi-U blade 4030×1720mm||Number of track shoes (each side)||41|
|Width of track shoe||560 mm|
|Track gauge||2140 mm|
|Ground length and ground pressure||3150-0.105 mm/MPa|
|Dozing capacity||Semi-U blade 11.9 m3||Pitch||228.6mm|
|Ma× drop below ground of blade||560 mm||Reverse speed||0–4.4km/h|
|Lift height of blade||1560 mm||0–7.8km/h|
|Ripper type||Single ripperThree-shank ripper||0–13.5km/h|
In response to the demands of severe working conditions in earthwork projects, SD32 crawler bulldozer is a high power bulldozer under standardized mass production with the application of domestic leading production processes and technologies.
1. The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity.
2. The independent engine water tank, the chassis oil cooler, and the water-air inter cooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.
3. The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.
