Product Details:
Payment & Shipping Terms:
|
| Model: | SD13 | Engine: | Shangchai SC8D143G2B1 |
|---|---|---|---|
| Operating Weight (Ripper Not Included): | 13.7t | Ripping Depth Of Ripper: | 467mm |
| Number Of Carriers (each Side): | 2 | Blade Type: | Straight Tilt Blade Angle Blade |
| High Light: | dozer construction equipment,heavy equipment bulldozer |
||

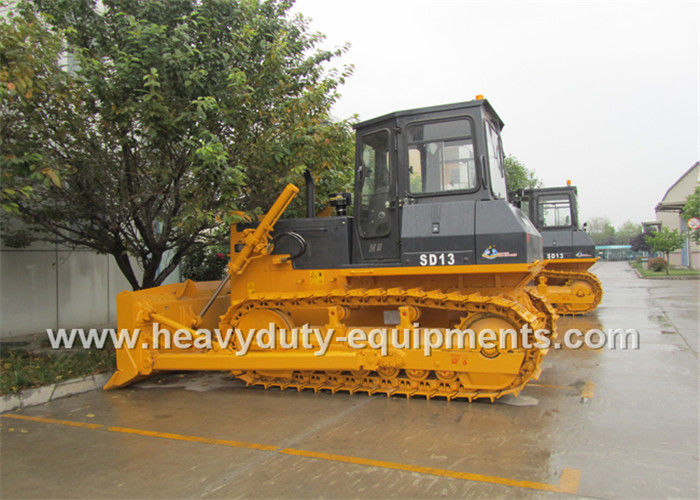

Shantui bulldozer standard SD13 equipped with Shangchai SC8D143G2B1 engine
Specification:
| ITEM | SD13 | Engine | Shangchai SC8D143G2B1 Cummins 6CTA8.3-C145 |
| L×W×H (Ripper not included) | 4492×3185×2950mm | Ripping depth of ripper | 467mm |
| Operating weight (Ripper not included) | 13.7t | ||
| Rated power | 95.5/1900 108/1900 kW/rpm | Lifting height of ripper | 930mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | Straight tilt blade Angle blade | Number of track rollers (each side) | 6 |
| Blade width | Straight tilt blade 3185×1090 | Number of track shoes (each side) | 38 |
| Width of track shoe | 460mm | ||
| Angle blade 3475×915mm | Track gauge | 1880mm | |
| Ground length and ground pressure | 2365-0.063mm/MPa | ||
| Dozing capacity | Straight tilt blade 3.7 m3 | Pitch | 190mm |
| Forward speed | 0–3.2km/h | ||
| Angle blade 3.4 m3 | 0–5.9km/h | ||
| 0–9.8km/h | |||
| Ma× drop below ground of blade | 590 mm | Reverse speed | 0–3.9km/h |
| Lift height of blade | 930mm | 0–7.1km/h | |
| Ripper type | Three-shank ripper |
Description:
Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
Advantage:
1. The single control lever can control all blade actions;
2. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
3. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
4. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
5. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
