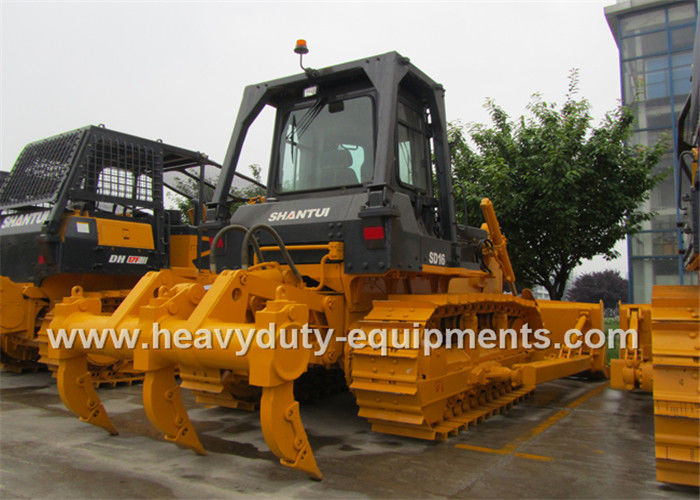

Wetlands Shantui Bulldozer SD16 TL Heavy Earth Moving Machinery 2300mm Track gauge

China Wetlands Shantui Bulldozer SD16 TL Heavy Earth Moving Machinery 2300mm Track gauge supplier

Large Image :  Wetlands Shantui Bulldozer SD16 TL Heavy Earth Moving Machinery 2300mm Track gauge

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD16TL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: SD16TL Engine: ShangchaiSC11CB184G2B1
Operating Weight (Ripper Not Included): 18.4t Blade Type: Straight Tilt Blade U-blade
Blade Width: Straight Tilt Blade 4150×960mm Dozing Capacity: Straight Tilt Blade 3.8m3
High Light:

dozer construction equipment

,

heavy equipment bulldozer

Wetlands Shantui Bulldozer SD16 TL Heavy Earth Moving Machinery 2300mm Track gauge





Specification:



ITEM SD16TL Engine ShangchaiSC11CB184G2B1
L×W×H (Ripper not included) 5262×4150×2950mm Ripping depth of ripper -
Operating weight (Ripper not included) 18.4t -
Rated power 120/1850kW/rpm Lifting height of ripper -
Gradeability 30° Number of carriers (each side) 2
Blade type Straight tilt blade U-blade Number of track rollers (each side) 7
Blade width Straight tilt blade 4150×960mm Number of track shoes (each side) 42
Width of track shoe 1100mm
Track gauge 2300mm
Ground length and ground pressure 2365-0.063mm/MPa
Dozing capacity Straight tilt blade 3.8m3 Pitch 203.2mm
Forward speed 0–2.7km/h
0–3.8km/h
0–5.4km/h
Max drop below ground of blade 495 mm Reverse speed 0–11.1km/h
Lift height of blade 1005 mm 0–3.5km/h



Description:



The SD16TL Extra-Swamp Bulldozer was developed to meet the requirements for operation in wetlands.



Advantage:



The SD16TL is equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16TL the ideal construction machine for muddy or wet environments.The safe locking function for traveling and working devices and the machine safety passage system are provided to improve the operation safety. The modular structure features low malfunction rate and easy maintenances.
