Product Details:
Payment & Shipping Terms:
|
| Operating Weight (Ripper Not Included): | 37.2T | Engine: | Cummins NT855-C360S10 |
|---|---|---|---|
| Engine Power: | 235kw | L×W×H (Ripper Not Included): | 6880×4130×3725mm |
| Blade Type: | Straight Tilt Blade / Semi-U-blade / Angle Blade | Straight Tilt Blade Width: | 4130×1590mm |
| Straight Tilt Blade Dozing Capacity: | 10m3 | ||
| High Light: | shantui construction machinery,dozer construction equipment |
||
| ITEM | SD32 | Engine | Cummins NT855-C360S10 |
| L×W×H (Ripper not included) | 6880×4130×3725mm | Ripping depth of ripper | Single ripper 1250mm |
| Operating weight (Ripper not included) | 37.2t | Three-shank ripper 842mm | |
| Rated power | 235/2000kW/rpm | Lifting height of ripper | Single ripper955mm/Three-shank ripper 883mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type |
Straight tilt blade Semi-U-blade Angle blade |
Number of track rollers (each side) | 7 |
| Blade width | Straight tilt blade 4130×1590mm | Number of track shoes (each side) | 41 |
| Semi-U blade 4030×1720mm | Width of track shoe | 560mm | |
| ----- | Track gauge | 2140mm | |
| Angle blade 5000×1140mm | Ground length and ground pressure | 3150-0.105mm/MPa | |
| Dozing capacity | Straight tilt blade 10m3 | Pitch | 228.6mm |
| Semi-U blade 11.9m3 | Forward speed | 0–3.6km/h | |
| --- | 0–6.6km/h | ||
| Angle blade 6m3 | 0–11.5km/h | ||
| Ma× drop below ground of blade | 560 mm | Reverse speed | 0–4.4km/h |
| Lift height of blade | 1560 mm | 0–7.8km/h | |
| Ripper type |
Single ripper Three-shank ripper |
0–13.5km/h |
Description:

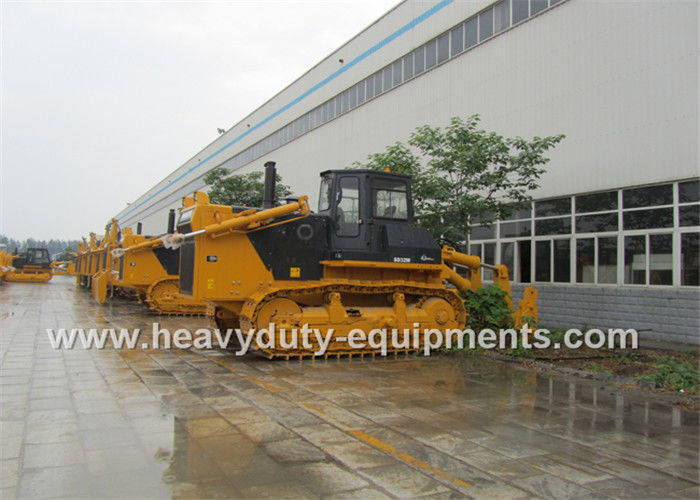

In response to the demands of severe working conditions in earthwork projects, SD32 crawler bulldozer is a high power bulldozer under standardized mass production with the application of domestic leading production processes and technologies.
Advantages:
1.Cummins NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available.
2.The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity.
3.The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Cummins engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.
4.The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.
5.The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity.
6.The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
Application:
Bulldozing, digging, landfill, and other bulk operations.
