|Operating Weight (Ripper Not Included):||23.44t||Ripper Type:||Single Ripper Three-shank Ripper|
|Ripping Depth Of Ripper:||Single Ripper 695mm||Lifting Height Of Ripper:||Single Ripper515mm|
shantui construction machinery,
dozer construction equipment

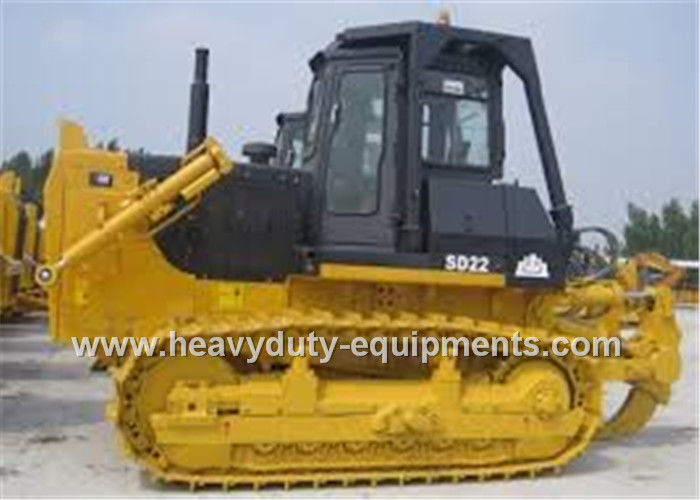

Shantui SD22W rock bulldozer equipped with 6m3 dozing capacity Cummins engine
|L×W×H (Ripper not included)||5750×3725×3395 mm||Ripping depth of ripper||Single ripper 695mm|
|Operating weight (Ripper not included)||23.44t||Three-shank ripper 666mm|
|Rated power||162/1800kW/rpm||Lifting height of ripper||Single ripper515mm/Three-shank ripper 555mm|
|Gradeability||30°||Number of carriers (each side)||2|
|Blade type||Straight tilt blade Angle blade||Number of track rollers (each side)||6|
|Blade width||Straight tilt blade 3725×1315 mm||Number of track shoes (each side)||38|
|Width of track shoe||560mm|
|Angle blade 4365×1055mm||Track gauge||2000mm|
|Ground length and ground pressure||2730-0.077mm/MPa|
|Dozing capacity||Straight tilt blade 6.4 m3||Pitch||216mm|
|Angle blade 4.7||0–6.5km/h|
|Ma× drop below ground of blade||540 mm||Reverse speed||0–4.3km/h|
|Lift height of blade||1210 mm||0–7.7km/h|
|Ripper type||Single ripper Three-shank ripper||0–13.2km/h|
Based on the SD22, the SD22W rock bulldozer is specially designed for work in rocky environments.
1. The SD22W features advanced performance, high reliability, low fuel consumption and convenient maintenance.
2. The SD22W is equipped with a high-strength, wear-resistant rock type blade and frame, making it adaptable for tough work with gravel, rock and weathered rock.
3. Optional attachments include a high positioning warning lamp, a reverse warning alarm, a camera and an LCD screen, which can all greatly improve safety during operation.
