Product Details:
Payment & Shipping Terms:
|
| Operating Weight: | 18800kg | Engine: | NT855- C280S10 |
|---|---|---|---|
| Engine Power: | 180hp | Blade Type: | Straight Tilt Blade |
| Blade Width * Height: | 3416x1149 Mm | Blade Capacity: | 4.5 Cbm |
| Max Lifting: | 1124mm | Width Of Track Shoes: | 510mm |
| Ripper: | 3 Shank Ripper | ||
| High Light: | dozer construction equipment,heavy equipment bulldozer |
||

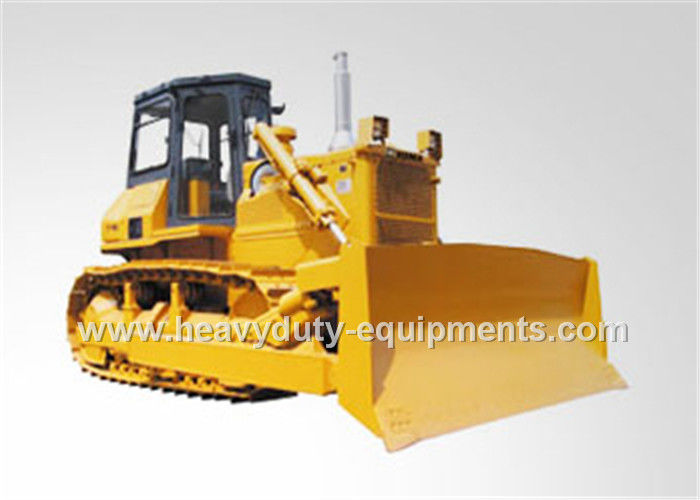

180hp Cummins engine XGMA XG4181L bulldozer for tropical and desert application
Specification:
| Model | XG4181L | Engine model |
Cummins NT855-C280S10 |
| Blade type | Straight tilt blade | Blade capacity | 4.5 m³ |
| Track gauge | 1880 mm | Track type | Sealed, assembled single-grouser |
| Operating weight | 18800kg | Main ground Clearance | 400 mm |
| Min turning radius | 3.3m | Grade ability | 30° |
| Blade width * height | 3416x1149mm | Max Depth | 584 mm |
| Max lifting | 1124mm | Working cylinder type | Double-acting piston type |
| Width of Track shoes | 510mm |
Flywheel horse power |
180hp |
| Engine oil capacity | 45L | Hydraulic tank capacity | 108L |
|
3-shank ripper Max.lift |
702mm | Max.digging depth | 572mm |
Description:
Industry-leading driving force, efficient work, Sensitive and reliable manipulation, easy to maintain.
Advantages:
1. Awarded the ISO9001:2000 system certificate
2. Engine model: CUMMINS NT855-C280S10 SHANGCHAI C6121ZG58 / WEICHAI WD10G200E15
3. Flywheel horsepower: 180 HP (135 KW)/1850RPM
4. Operating weight (straight-tilt dozer): 18800KG
5. Made using KOMATSU D65E-8 bulldozer technology, XGMA bulldozer features high performance, great efficiency, safe and reliable operation
6. The bulldozer is widely used in infrastructure and industries including large mining area, port, power plant, road building, etc.
7. Enlarged water tank and 3-stage air cleaning are available at customers' option for tropical and desert application.
8. Optional attachments: straight-tilt blade, angle blade, u-blade, ROPS cabin, canopy, 3-shank ripper, air conditioner, 510mm track shoes, 610mm track shoes.
Application:
Earth moving projects, bulldozing, digging, landfill, and other bulk operations.
